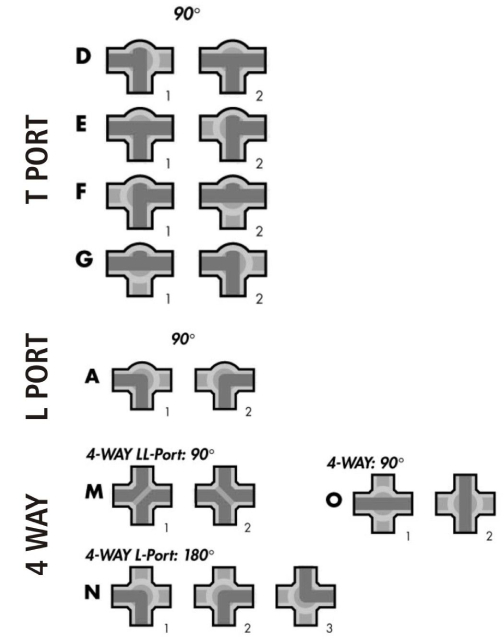

3 Way Ball Valve

DIMENSIONS FOR 3 WAY BALL VALVE
Size	Rating	A	0B	0(	0D	0E	T	PCD	Holes	H	L
15mm	150#	139	12.5	15	89	34.9	11.5	60.5	4-016	60	150
15mm	300#	152	12.5	15	95	34.9	14.3	67.0	4-016	60	150
20mm	150#	152	15	19	99	42.9	11.5	70	4-016	60	150
20mm	300#	163	15	19	118	42.9	15.9	82.5	4-019	60	150
25mm	150#	165	19	32	108	50.8	11.5	79.5	4-016	65	175
25mm	300#	291	19	32	124	50.8	11.5	89.0	4-019	70	175
40mm	150#	215	32	38	127	730	14.3	98.5	4-016	75	200
40mm	300#	220	32	38	156	730	20.6	114.5	4-022	80	225
50mm	150#	235	38	50	152	92.1	15.9	120.7	4-016	80	225
50mm	300#	262	38	50	165	92.1	22	127	8-019	90	250
65mm	150#	280	50	65	178	104.8	17.5	140	4-019	90	250
65mm	300#	318	50	65	191	104.8	25.5	149	8-022	100	275
80mm	150#	318	65	76	191	1270	19.5	152.5	4-019	105	275
80mm	300#	365	65	76	210	1270	28.6	168.5	8-022	115	300
100mm	150#	365	76	102	229	157.2	23.8	190.5	8-019	115	300
100mm	300#	425	76	102	254	157.2	317	200	8-022	125	350
150mm	150#	432	102	152	279	185.7	25.4	241	8-022	125	350
150mm	300#	432	102	152	318	185.7	36.5	270	12-022	150	400

Note : All dimensions are in MM

4 Way Ball Valve

DIMENSIONS FOR 4 WAY BALL VALVİ
Size	Rating	A	0B	0(	0D	0E	T	PCD	Holes	H	L
	150#	165	19	32	108	50.8	11.5	79.5	4-016	95	250
25mm	300#	190	19	32	124	50.8	11.5	89.0	4-019	95	250
	150#	216	32	38	127	730	14.3	98.5	4-016	105	280
40mm	300#	235	32	38	156	730	20.6	114.5	4-022	105	280
	150#	279	38	50	152	92.1	15.9	120.7	4-016	135	350
50mm	300#	279	38	50	165	92.1	22	127	8-019	140	350
	150#	306	50	65	178	104.8	17.5	140	4-019	155	400
65mm	300#	381	50	65	191	104.8	25.5	149	8-022	160	400
	150#	356	65	76	191	1270	19.5	152.5	4-019	160	450
80mm	300#	450	65	76	210	1270	28.6	168.5	8-022	170	450
	150#	435	76	102	229	157.2	23.8	190.5	8-019	180	475
100mm	300#	560	76	102	254	157.2	317	200	8-022	215	500
	150#	525	102	152	279	185.7	25.4	241	8-022	235	500
150mm	300#

Note : All dimensions are in MM
